We, NNIT Car Parking Systems Pvt Ltd (Nilesh Nirman Innovative Technologies) is one of the leading manufacturing ISO 9000-2015 company in multilevel car parking system technologies since 2018 situated in Talawade, Pune (Maharashtra).
About Us

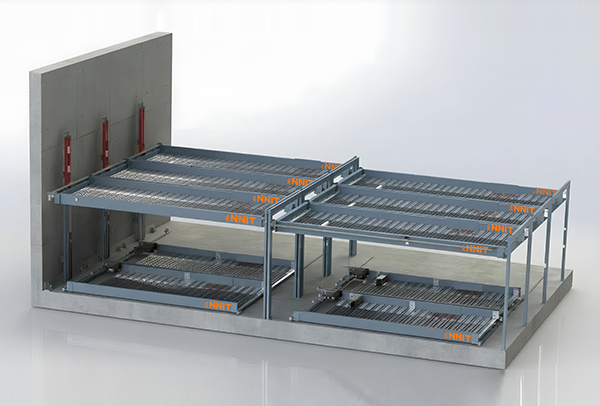

2BTB mean back to back puzzle system with two levels: Entry & upper. The car enters in 2BTB from the drive way. In order to enter the puzzle park on the behind platform, the car drives in from the drive way & passes through the empty space created in puzzle.
| Height Available (H) | 3300 | 3400 | 3500 | 3600 | 3700 | 3800 | 3900 | 4000 | 4100 | 4200 |
| Upper Car Height (G+1) | 1500 | 1500 | 1500 | 1600 | 1600 | 1600 | 1700 | 1800 | 1900 | 2000 |
| Ground Car Height (G) | 1500 | 1600 | 1700 | 1800 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Platform Width(w) | 1900 (min) | 2400 (max) |
| Total Width Required | (N)(W+200)+200 | |
(N)= Number of grids
| Total Available Length | 4500 (Min) | 5500 (Max) | |
| Platform Length | Total Available Length-500 | ||
| Car Length | Total Available Length-500 | ||
Complying with set of quality standards, our products are appreciated for elegant design, easy usage, easy maintenance, easy installation, corrosion resistance & longer working life.
