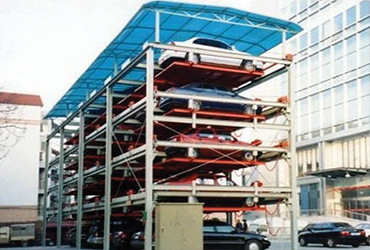

Multi Level Puzzle Car Parking System Manufacturer in Pune

Multilevel Puzzle

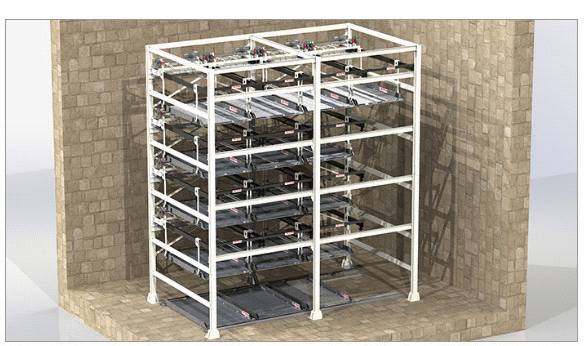

Puzzle can have up to 8 levels above ground level and 3 levels in pit. Horizontally it can have up to 10 grids. One grid (except for the topmost level) is to be kept empty for puzzle operation. To drive out or park any car on platform at upper level, the Parking system puzzles itself and brings down the respective platform. Entry level platforms are driven only horizontally. Upper level platforms are driven horizontally as well as vertically while Upper most platforms are driven only vertically using traction and ropes. Choose Multi Level Puzzle Car Parking System Manufacturer in Pune.

Contact Us
General Specifications

Loading Capacity: 2000 kgs per car

Drive: Traction & Hydraulic

Coating: Sand blasted, Epoxy Painted System. Hot Dip Galvanized platforms

Power Pack for 1 level pit system: 3 phase Induction Motor - 3 HP

Power Pack for 2 level pit system: 3 phase Induction Motor - 4 HP

Power Pack for 3 level pit system: 3 phase Induction Motor - 6 HP

Structural Loads of system

System: Varies with change in number of grids and levels in a puzzle and type of installations (indoor or outdoor), contact us for details.

Electrical Requirement for system

Incoming Supply: 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack

Switchgear: 4 pole, 63 amps MCB for each panel (rating dependent on number og grids and levels in a puzzle)

Cable from main switch to MCB: 4 core, 2.5 sq mm, armored Copper cable with a separate earth wire

Note: Extra width and length is required for baseplate in case of over ground puzzle for outdoor systems, column sizes may increase for installations with more than 4 levels which may require extra width and length Width of platforms in the pit will be 100 mm less than upper level platform.

CAR DIAMENSION TABLE

  • Height Details

  • Width Details

  • Length Details

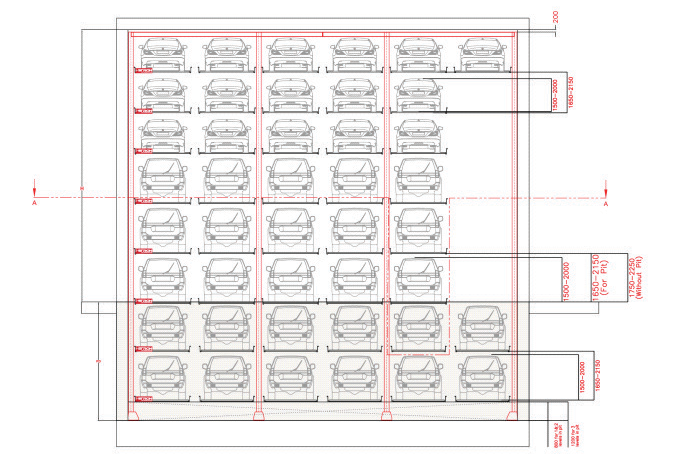

Height Required Above Ground (H) L(m(x+150)+n (y+150))+200
Pit Depth Required Below Ground (PD)-For 1 and 2 in pit T(a(u+150)+b (v+150))+800
Pit Depth Required Below Ground (PD)-For 3 in pit system T(a(u+150)+b (v+150))+1200

L= Number of levels above the ground

m= Number of levels of SUV's above ground

n= Number of levels of Sedans above ground

v= Height of Sedan in the pit

T= Number of levels in the pit

a= Number of levels of SUVs in the pit

b= Number of levels of Sedans in the pit

x= Height of SUV above ground

y= Height of Sedan above ground

u= Height of SUV in the pit

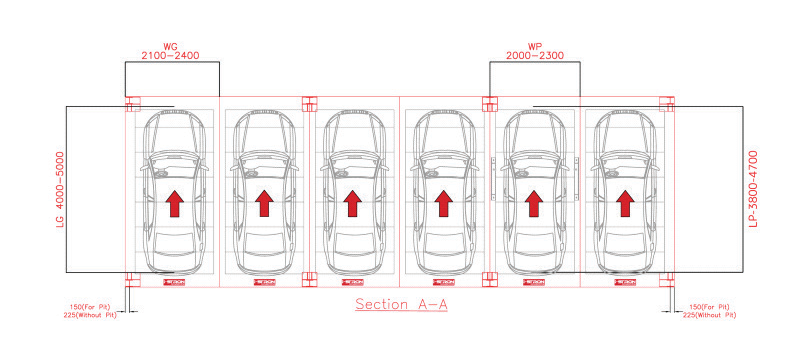

Platform Width (WG) (Ground and above levels) 2100 (min) 2400 (max)
Platform Width (WP) (Pit levels) 2000 (min) 2300 (max)
Total Width Required (Ground and above levels) (W) N*(WG+350)+400
Total Width Required (Pit Level) N*(WP+450)+400
Total Available Length 4900 (Min) 5900 (Max)
Car Length (Ground and above levels) (LG) Total Available Length -900
Pit Car Length (LP) Total Available Length -1100

Complying with set of quality standards, our products are appreciated for elegant design, easy usage, easy maintenance, easy installation, corrosion resistance & longer working life.
