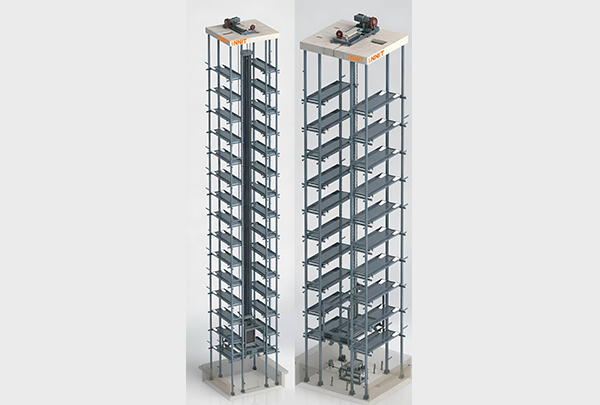

Tower Car Parking System Manufacturer in Pune

Tower Parking

Tower has one lift that takes the cars up and down to upper levels or in the pit and sliding mechanism to put the parking platform at empty space. A tower can have as many as 25 levels above ground and/or 25 levels below ground making it one of the most efficient parking system. It is a fully automatic product with single entry/exit points. In normal cases it has a lift at the center and one row of parking to its either sides. Number of parking rows can be upto 3 at either sides but it increases average retrieval time to considerably. We are best Tower Car Parking System Manufacturer in Pune.

Contact Us
General Specifications

Loading Capacity: 2000 kgs per car

Drive: Traction

Coating: Sand blasted, Epoxy Painted System. Hot Dip Galvanized platforms

Lifting Motor: 18.5 Kw Horizontal Motor: 1.5 Kw Turn Table Motor: 1.5 Kw

Structural Loads of system

System: Varies with change in number of grids and levels in a puzzle and type of installations (indoor or outdoor), contact us for details.

Electrical Requirement for system

Incoming Supply: 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack

Switchgear: 4 pole, MCB for each (rating dependent on number og grids and levels in a puzzle)

Cable from main switch to MCB:

Note: Extra width and length is required for baseplate in case of over ground puzzle for outdoor systems, column sizes may increase for installations with more than 4 levels which may require extra width and length Width of platforms in the pit will be 100 mm less than upper level platform.

TYPES OF TOWER PARKING

Indoor Bracket Type: 3 Loads of Cars and Platforms are transferred to the RCC wall around it through Steel Brackets, and wind load is taken care of by the RCC structure (shaft) around the Tower Parking.

Indoor Column Type: Loads of Cars and Platforms are transferred to the foundation through Steel columns, and wind load is taken care of by the RCC structure (shaft) around the Tower Parking.

Outdoor Type: Loads of Cars and Platforms are transferred to the foundation through Steel Columns, and wind load is taken care of by the Steel structure of the Tower Parking

4 core, 2.5 sq mm, armoured Copper cable with a seperate earth wire

CAR DIAMENSION TABLE

  • Height Details

  • Width Details

  • Length Details

Type Indoor Outdoor
Height Required Above Ground (Without Turntable) (n(A+100)+m (B+100))+6400 (n(A+150)+m (B+150))+6400
Height Required Above Ground (With Tuntable) (n(A+100)+m (B+100))+6700 (n(A+100)+m (B+100))+6700
Pit Depth Required Below Ground (u(A+100)+v (B+100))+1800 (u(A+150)+v (B+150))+1800

n = Number of levels of SUV's above the ground

m = Number of levels of Sedans above ground

A = Height of SUV (1800, 1900,2000)in mm

u = Number of levels of SUVS below ground

b = Number of levels of Sedans below ground

B = Height of Sedan (1500,1600,1700)in mm

Type Indoor Outdoor
Platform Width 1840 mm 1840 mm 1840 mm 1840 mm 1840 mm 1840 mm 1840 mm
0-1 5050 5250 5450 5650 5850 6050 6250
0-2 7470 7770 8070 8070 8370 8670 8970
0-3 9685 10085 10485 10285 10685 11085 11485
1-1* 6450 6750 7050 7050 7350 7650 7950
1-2 9010 9410 9810 9610 10010 10410 10810
1-3 11225 11725 12225 11825 12325 12825 13325
2-2 11225 11725 12225 11825 12325 12825 13325
2-3 13440 14040 14640 14040 14640 15240 15840
3-3 15655 16355 17055 16255 16955 17955 18355
Type Indoor Bracket Indoor Structure Outdoor
Car Length 4500 5000 5500 4500 5000 5500 4500 5000 5500
Total Available Length 5300 5800 6300 5400 5900 6400 5900 6400 6900

Complying with set of quality standards, our products are appreciated for elegant design, easy usage, easy maintenance, easy installation, corrosion resistance & longer working life.
