We, NNIT Car Parking Systems Pvt Ltd (Nilesh Nirman Innovative Technologies) is one of the leading manufacturing ISO 9000-2015 company in multilevel car parking system technologies since 2018 situated in Talawade, Pune (Maharashtra).
About Us

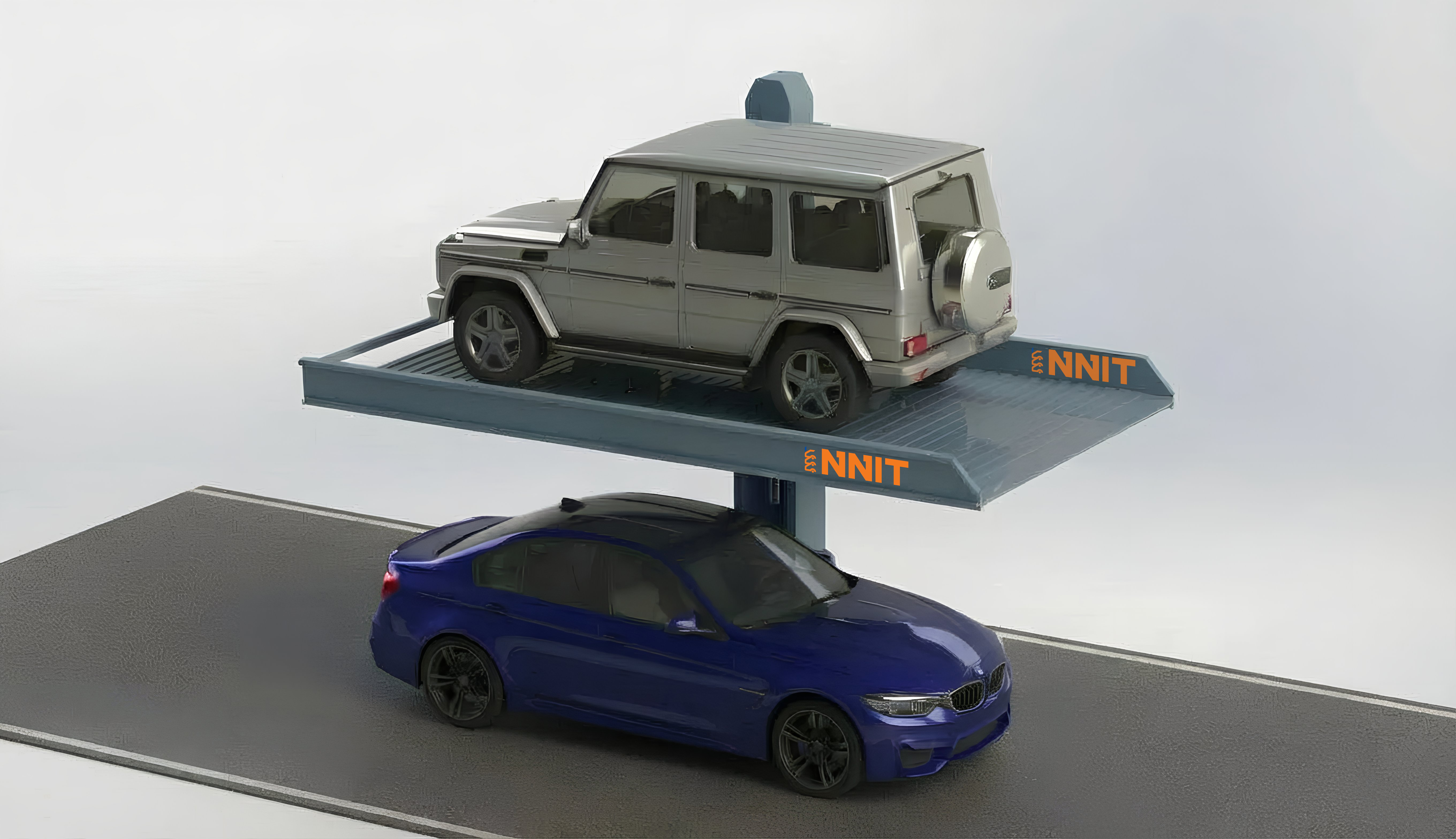

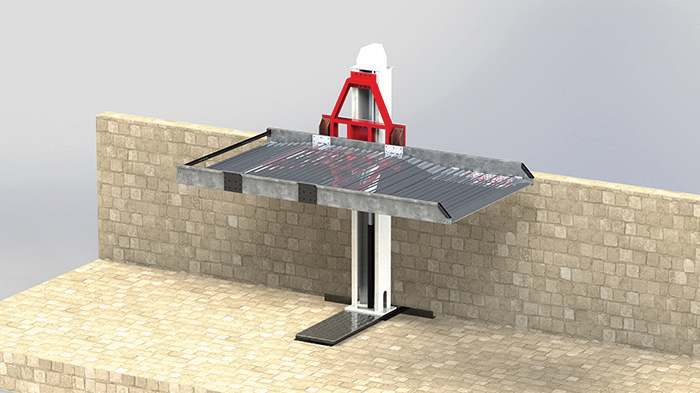

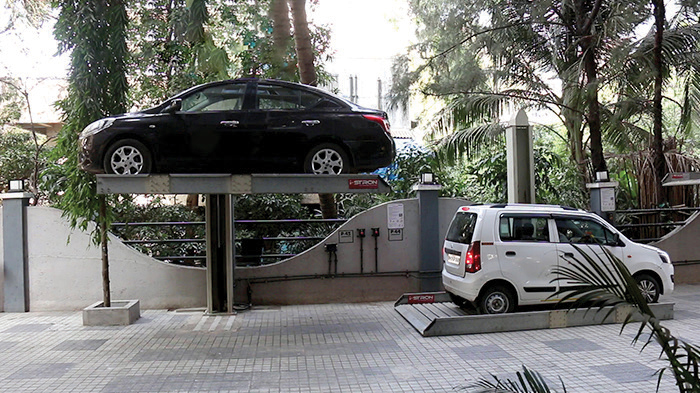

Cantilever uses a platform that is driven upwards and downwards similar to 2DP. The difference being both the columns and cylinders are shifted to one side of the platform in order to free the other side. The cantilever Stack park is installed in the driveways, touching the compound wall or any other corner. When the platform is at its peak level, the driveway is clear for normal usage. Choose Cantilever Car Parking System Manufacturer in Pune for best deals.
Loading Capacity: 1200 Kgs
Drive: Hydraulic
Coating: Sand blasted, Epoxy Painted System. Hot Dip Galvanized platforms
Power Pack: 3 phase Induction Motor - 3 HP
Vertical: 7500 kgs
Horizontal: 1000 kgs
Incoming Supply: 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to each powerpack
Switchgear: 4 pole, 63 amps MCB for each powerpack
Cable from main switch to MCB: 4 core, 2.5 sq mm, armored Copper cable with a separate earth wire

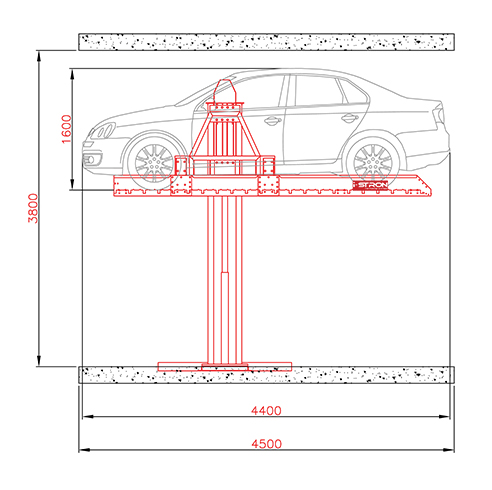

| Height Available (H) | 3800 |
| Upper Car Height (G+1) | 1600 |
| Drive Through Car Height (G) | 2000 |

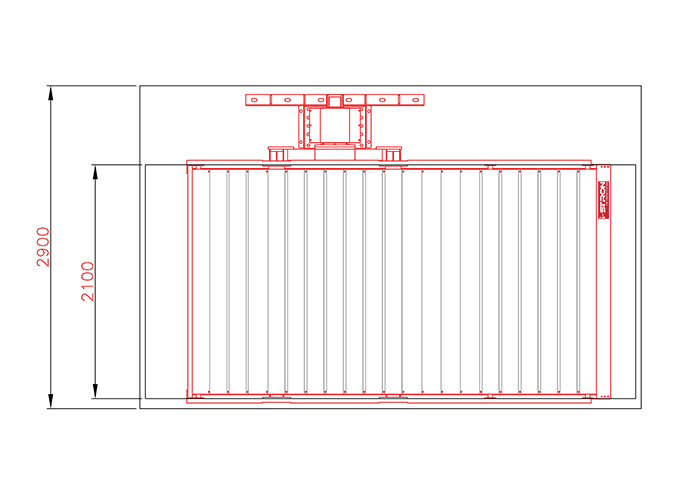

| Platform Width (w) | 2100 (Standard) |
| Total Width Required | 2900 (Standard) |
| Total Available Length | 4500 (Standard) |
| Platform Length | 3800 (Standard) |
| Car Length | Total Available Length-100 |
Complying with set of quality standards, our products are appreciated for elegant design, easy usage, easy maintenance, easy installation, corrosion resistance & longer working life.
