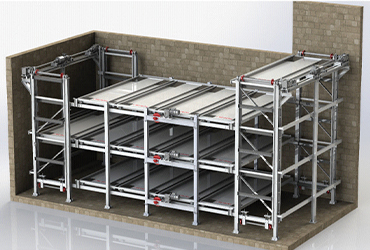

Horizontal circulation puzzle can have ten levels below the ground & up to eight horizontal grid. There is only one entry & exit point located on ground level. An elevator carrying a platform carries the car from the entry level to the parking platform level. Platform left to rights depending less retrieval/parking time. There is another sub elevator that facilitates the movement of platform to park or retrieves the cars.We are the best Horizontal Circulation Puzzle Car Parking System Manufacturer in Pune.

CAR DIAMENSION TABLE

Number of grids=N

No of Levels L

No of Cars=(N-2)*L+2

  • Height Details

  • Width Details

  • Length Details

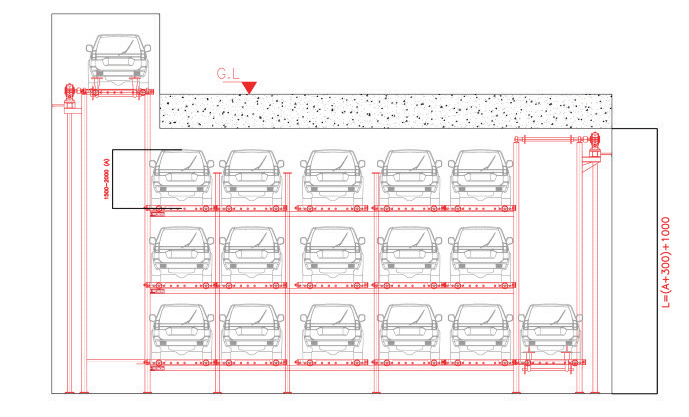

Total Height Required (H) L(A+300)+1000
Car Height (A) 1500(min)     2000(max)

L= Number og levels below the ground

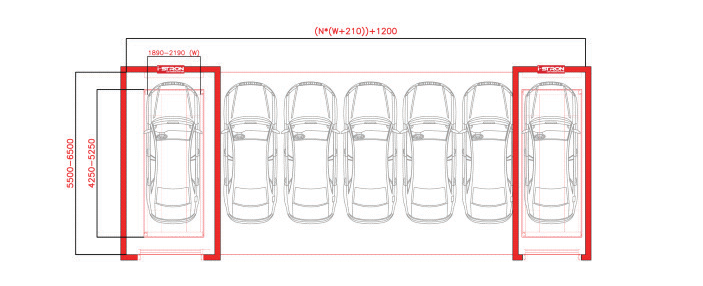

Clear Platform Width (w) 1890 mm 2040 mm 2190 mm
Total Width Required (N*(W+210))+1200

N= Number of grids including elevator grids

Total Available Length 5500 (Min) 6500 (Max)
Platform Length Total Available Length-1250
Car Length Total Available Length-1250
