We, NNIT Car Parking Systems Pvt Ltd (Nilesh Nirman Innovative Technologies) is one of the leading manufacturing ISO 9000-2015 company in multilevel car parking system technologies since 2018 situated in Talawade, Pune (Maharashtra).
About Us

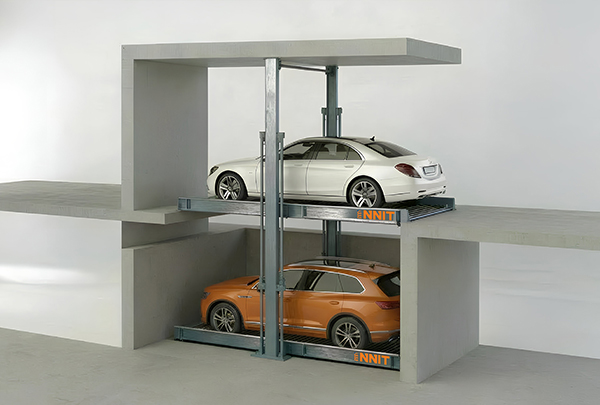

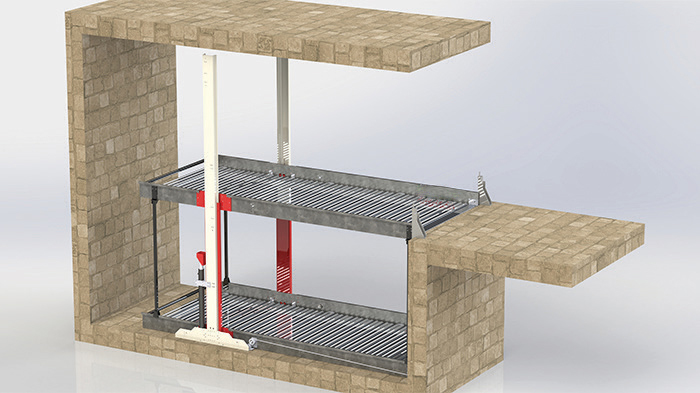

2DP uses 2 interconnected platforms similar to 2IP. The platforms are driven upwards and downwards together. To take out the lower car, upper car has to be taken out and parked elsewhere. 2DP is used specifically where the height available is limited but provision for pit is possible.
Loading Capacity: 2000 kgs per car
Drive: Hydraulic
Coating: Sand blasted, Epoxy Painted System. Hot Dip Galvanized platforms
Power Pack: 3 phase Induction Motor - 3 HP
Vertical: 5000 kgs
Horizontal: 500 kgs

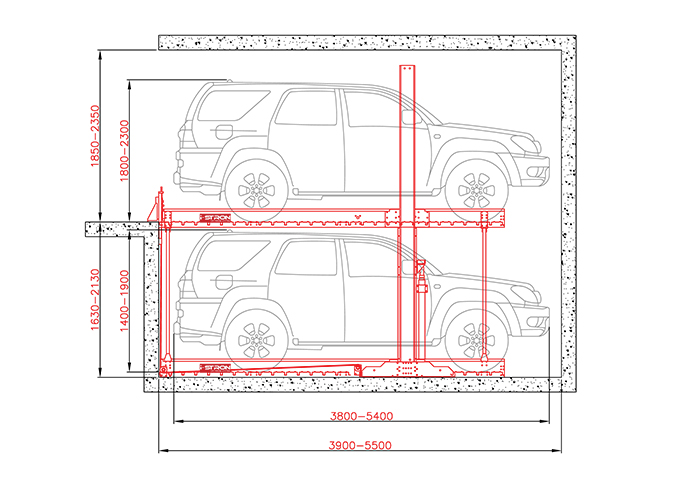

| Height Available (H) | 1950 | 2050 | 2150 | 2250 | 2350 |
| Ground Car Height (G) | 1900 | 2000 | 2100 | 2200 | 2300 |
| Max Pit Depth (PD) | 1730 | 1830 | 1930 | 2030 | 2130 |
| Pit 1 Car Height (P1) | 1500 | 1600 | 1700 | 1800 | 1900 |

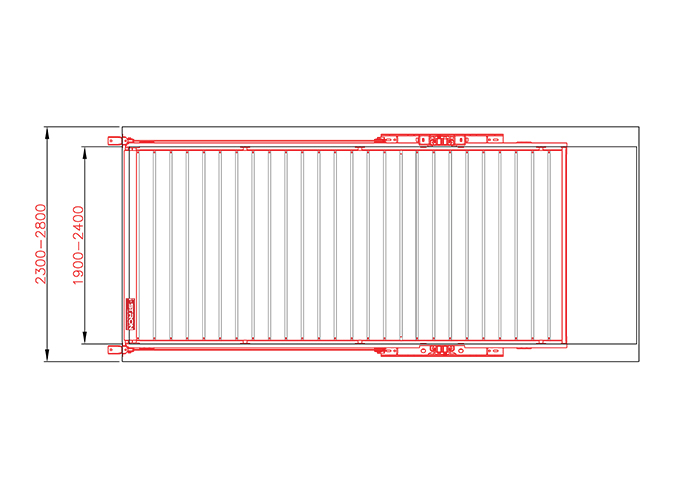

| Platform Width(w) | 1900 (min) | 2400 (max) |
| Total Width Required | (W+350) | |
| Total Available Length | 4000-4500 | 4600-5000 | 5100-5500 |
| Platform Length | 3825 | 4175 | 4700 |
| Car Length | Total Available Length-200 | ||
Complying with set of quality standards, our products are appreciated for elegant design, easy usage, easy maintenance, easy installation, corrosion resistance & longer working life.
