We, NNIT Car Parking Systems Pvt Ltd (Nilesh Nirman Innovative Technologies) is one of the leading manufacturing ISO 9000-2015 company in multilevel car parking system technologies since 2018 situated in Talawade, Pune (Maharashtra).
About Us

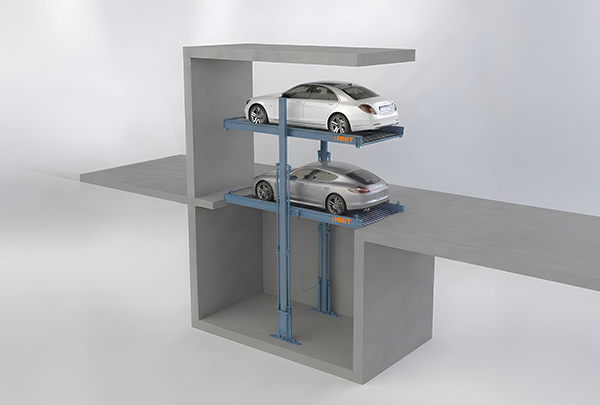

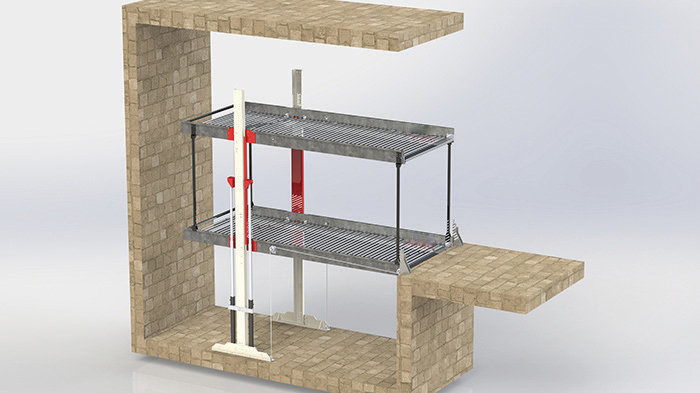

2IP uses 2 interconnected platforms that are driven upwards and downwards together. While one car is parked on the available platform, the other car is parked on the lower level platform. To retrieve the upper car, system takes down both the platforms together. Lower car goes inside the pit while the upper car reaches the ground level that can be taken out. To take out the lower car, system takes up both the platforms together and lower car reaches the ground level.
Loading Capacity: 2000 kgs per car
Drive: Hydraulic
Coating: Sand blasted, Epoxy Painted System. Hot Dip Galvanized platforms
Power Pack: 3 phase Induction Motor - 4 HP
Vertical: 5000 kgs
Horizontal: 700 kgs
Incoming Supply: 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to each powerpack
Switchgear: 4 pole, 63 amps MCB for each powerpack
Cable from main switch to MCB: 4 core, 2.5 sq mm, armored Copper cable with a separate earth wire

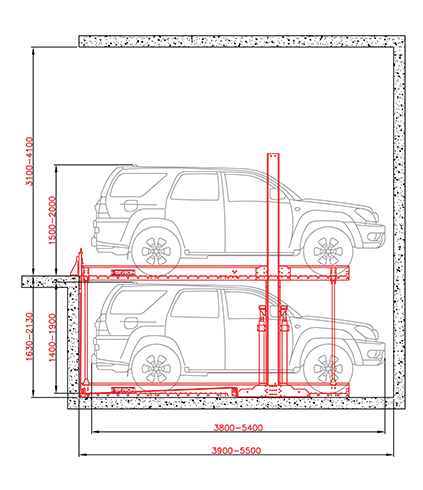

| Height Available (H) | 3200 | 3300 | 3400 | 3500 | 3600 | 3700 | 3800 | 3900 | 4000 | 4100 |
| Ground Car Height (G) | 1500 | 1500 | 1500 | 1500 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 |
| Max Pit Depth (PD) | 1730 | 1830 | 1930 | 2030 | 2130 | 2130 | 2130 | 2130 | 2130 | 2130 |
| Pit Car Height (P1) | 1500 | 1600 | 1700 | 1800 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Total Available Length | 4000-4500 | 4600-5000 | 5100-5500 |
| Platform Length | 3825 | 4175 | 4700 |
| Car Length | Total Available Length-100 | ||

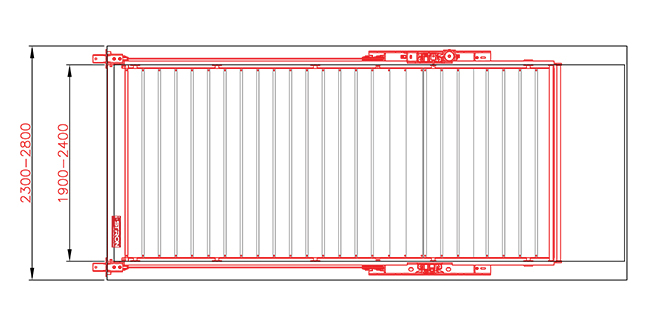

| Platform Width(w) | 1900 (min) | 2400 (max) |
| Total Width Required | (W+350) | |
Complying with set of quality standards, our products are appreciated for elegant design, easy usage, easy maintenance, easy installation, corrosion resistance & longer working life.
