2UGP 202

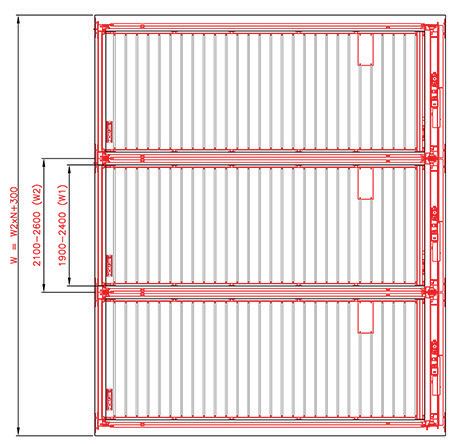

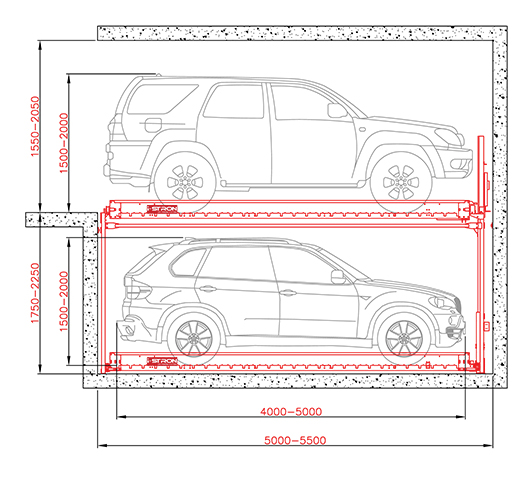

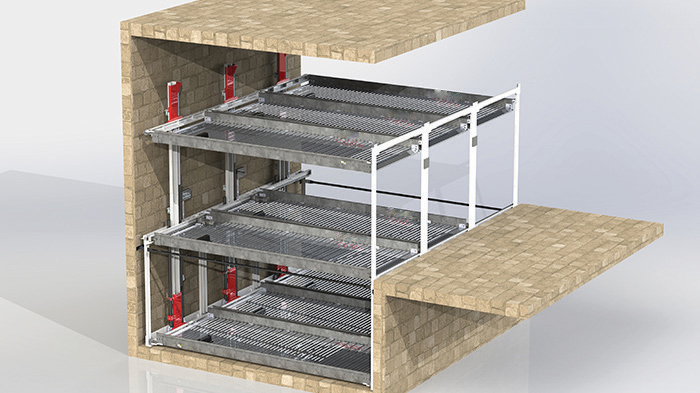

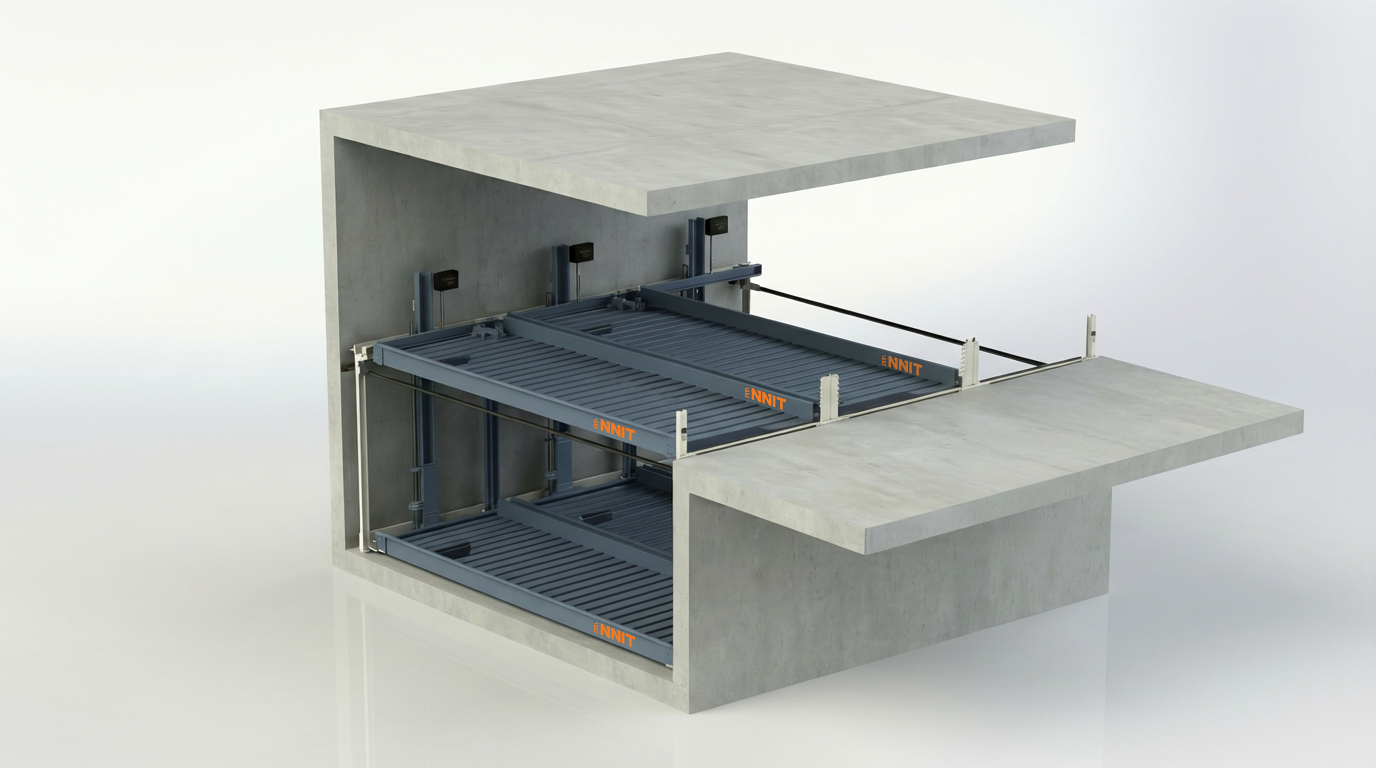

2UGP Puzzle Park has 2 levels viz entry and pit. Entry-level platforms are driven horizontally using a motor connected to traction. Pit level platforms are driven vertically using individual cylinders connected to each platform. To drive out any car parked on pit level platforms, entry -level platforms shift to their left or right positions making a space clear to bring down respective pit level platform. Cars parked on entry-level platforms can be directly driven out 2HC-Puzzle Park is used where limited height is available and provision for pit is possible.
