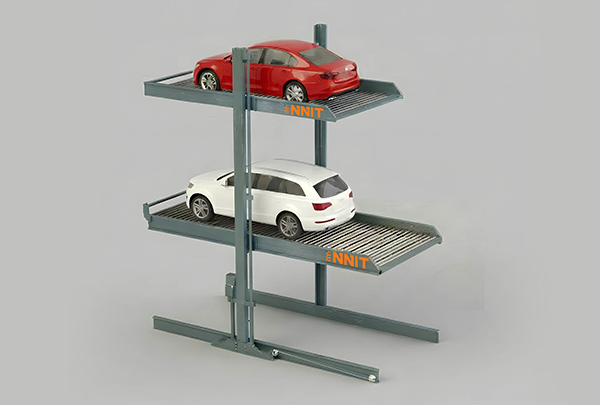

3DP uses 2 platforms, one above the other, to be driven upwards and downwards. While two cars are parked on both the platforms, the third car is parked at ground level. It uses the same mechanism as 2DP with higher parking efficiency but with increased dependency
Loading Capacity: 2000 kgs per car
Drive: Hydraulic
Coating: Sand blasted, Epoxy Painted System. Hot Dip Galvanized platforms
Power Pack: 3 phase Induction Motor - 4 HP
Vertical: 5000 kgs
Horizontal: 1500 kgs
Incoming Supply: 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to each powerpack
Switchgear: 4 pole, 63 amps MCB for each powerpack
Cable Routing: From Main Switch to MCB
Cable from main switch to MCB: 4 core, 2.5 sq mm, armored Copper cable with a separate earth wire

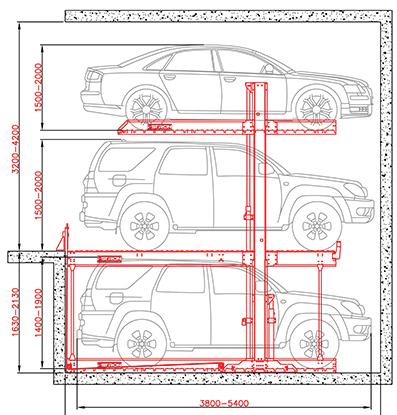

| Height Available (H) | 4900 | 5100 | 5300 | 5500 | 5700 | 5900 | 6100 | 6300 | 6400 |
| Upper Car Height (G+2) | 1500 | 1500 | 1600 | 1600 | 1600 | 1600 | 1700 | 1900 | 2000 |
| Lower Car Height (G+1) | 1500 | 1600 | 1600 | 1600 | 1700 | 1900 | 2000 | 2000 | 2000 |
| Lower Car Height(G) | 1500 | 1600 | 1700 | 1900 | 1900 | 2000 | 2000 | 2000 | 2000 |

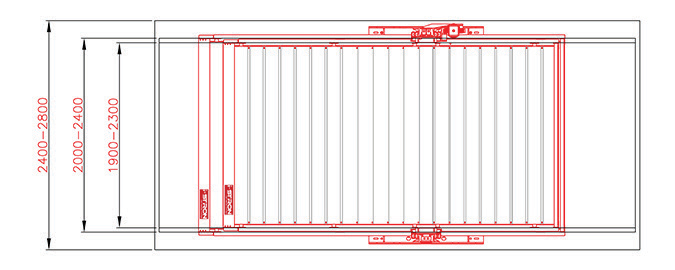

| Platform Width(w) | 2000 (min) | 2400 (max) |
| Platform Width (G+2) | 1900 (min) | 2300 (max) |
| Total Width Required | (W+400) | |
| Total Available Length | 4500 (min) | 5500 (max) |
| Platform Length | 4325 (Standard) | |
| Platform Length (G+2) | 3800 (Standard) | |
| Car Length | Total Available Length-100 | |
Complying with set of quality standards, our products are appreciated for elegant design, easy usage, easy maintenance, easy installation, corrosion resistance & longer working life.
