3DP 304

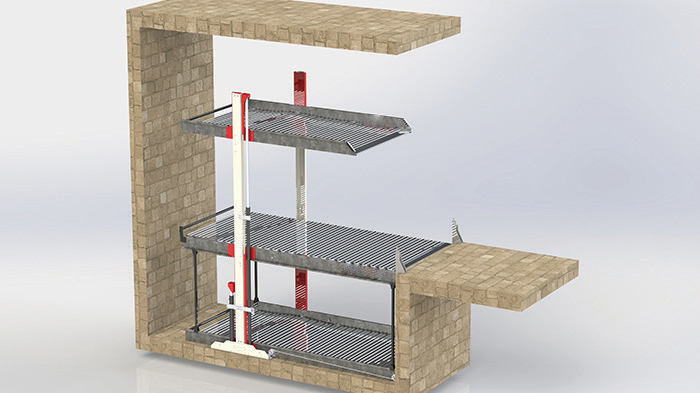

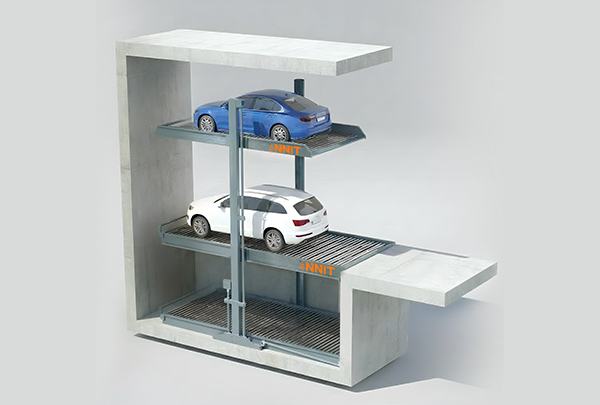

3DP uses 3 platforms, 2 of which (entry and lower level) are interconnected and upper level platform is driven upwards and downwards separately. To take out upper or lower level car, entry-level car has to be driven out and parked elsewhere.
x
N
N
I
T
About Us
We, NNIT Car Parking Systems Pvt Ltd (Nilesh Nirman Innovative Technologies) is one of the leading manufacturing ISO 9000-2015 company in multilevel car parking system technologies since 2018 situated in Talawade, Pune (Maharashtra).
About UsContact Info
- (+91) 951-837-7159
- info@nnitcarparking.in
- Registered Office Address: Flat no 1, Ruturang Apartment, Plot no 16, Madhusanchay Housing Society, Karvenagar, Pune 411052.
- Branch Office Address: Office no 2, Rahul Chamber, Karve Road, Pune 411001.
- Factory Address: 264/4, Mungase industrial estate, Jyotiba nagar, Talawade 411062.
Call Us On: (+91) 951-837-7159
Email id: info@nnitcarparking.in
3DP 304
General Specifications
Loading Capacity: 2000 kgs per car
Drive: Hydraulic
Coating: Sand blasted, Epoxy Painted System. Hot Dip Galvanized platforms
Power Pack: 3 phase Induction Motor - 3 HP
Structural Loads of system
Vertical: 8000 kgs
Horizontal: 700 kgs
Electrical Requirement for system
Incoming Supply: 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to each powerpack
Switchgear: 4 pole, 63 amps MCB for each powerpack
Cable from main switch to MCB: 4 core, 2.5 sq mm, armored Copper cable with a separate earth wire

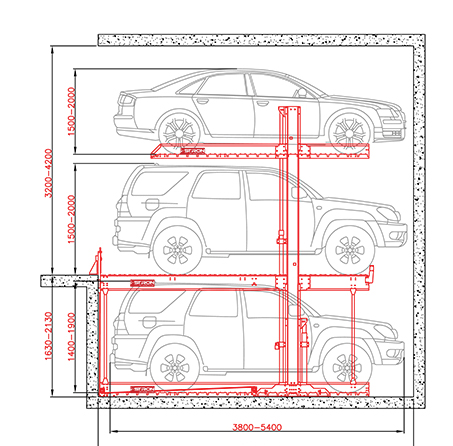

CAR DIAMENSION TABLE
| Height Available (H) | 3300 | 3400 | 3500 | 3600 | 3700 | 3800 | 3900 | 4000 | 4100 | 4200 |
| Level 1 Car Height (G+1) | 1500 | 1500 | 1500 | 1600 | 1600 | 1600 | 1700 | 1800 | 1900 | 2000 |
| Ground Car Height (G) | 1600 | 1700 | 1800 | 1800 | 1900 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Max Pit Depth (PD) | 1730 | 1830 | 1930 | 1930 | 1900 | 2030 | 2130 | 2130 | 2130 | 2130 |
| Pit Car Height (P1) | 1500 | 1600 | 1700 | 1700 | 1800 | 1900 | 1900 | 1900 | 1900 | 1900 |

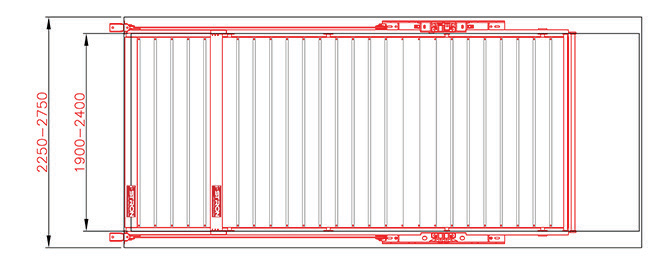

| Platform Width(w) | 1900 (min) | |
| Total Width Required | (W+350) | |
| Total Available Length | 4000-4500 | 4600-5000 | 5100-5500 |
| Platform Length | 3825 | 4175 | 4700 |
| Car Length | Total Available Length-200 | ||
Complying with set of quality standards, our products are appreciated for elegant design, easy usage, easy maintenance, easy installation, corrosion resistance & longer working life.
