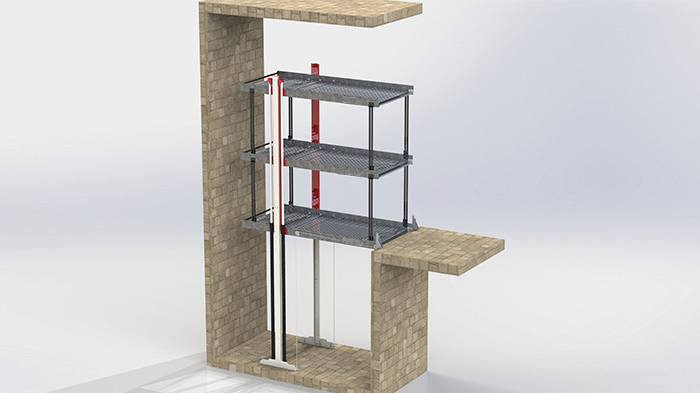

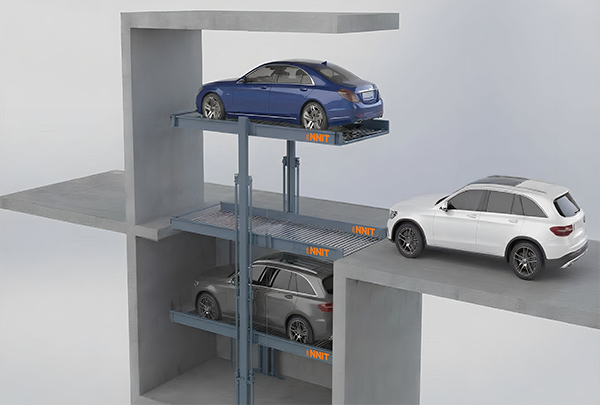

3IP uses 3 interconnected platforms that are driven upwards and downwards together. While one car is parked on the available platform, the other car is parked on the lower level platform. To retrieve the upper car, system takes down both the platforms together. Lower car goes inside the pit while the upper car reaches the ground level that can be taken out. To take out the lower car, system takes up both the platforms together and lower car reaches the ground level.
Loading Capacity: 2000 kgs per car
Drive: Hydraulic
Coating: Sand blasted, Epoxy Painted System. Hot Dip Galvanized platforms
Power Pack: 3 phase Induction Motor - 4 HP
Vertical: 8000 kgs
Horizontal: 1000 kgs
Incoming Supply: 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to each powerpack
Switchgear: 4 pole, 63 amps MCB for each powerpack
Cable from main switch to MCB: 4 core, 2.5 sq mm, armored Copper cable with a separate earth wire

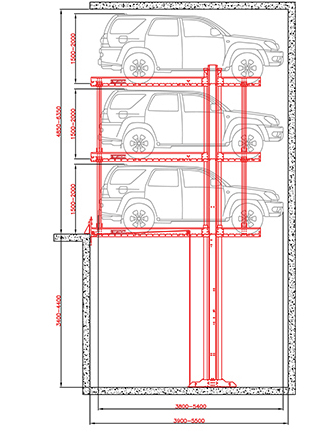

| Height Available (H) | 4850 | 5050 | 5250 | 5450 | 5650 | 5850 | 6050 | 6250 | 6350 |
| Ground Car Height (G) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1700 | 1900 | 2000 |
| Max Pit Depth (PD) | 3400 | 3600 | 3800 | 4000 | 4200 | 4400 | 4400 | 4400 | 4400 |
| Pit 1 Car Height (P1) | 1500 | 1600 | 1600 | 1600 | 1800 | 2000 | 2000 | 2000 | 2000 |
| Pit 2 Car Height (P2) | 1500 | 1600 | 1800 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |

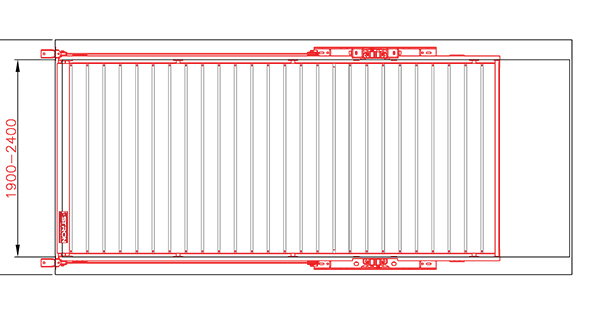

| Platform Width(w) | 1900 (min) | 2400 (max) |
| Total Width Required | (W+350) | |
| Total Available Length | 4000-4500 | 4600-5000 | 5100-5500 |
| Platform Length | 3825 | 4175 | 4700 |
| Car Length | Total Available Length-200 | ||
