3RP 305
3RP uses 3 platforms, 2 of which (entry and lower level) are interconnected and upper level platform is driven upwards and downwards separately. To take out lower level car, upper level car has to be driven out and parked elsewhere.
x
N
N
I
T
About Us
We, NNIT Car Parking Systems Pvt Ltd (Nilesh Nirman Innovative Technologies) is one of the leading manufacturing ISO 9000-2015 company in multilevel car parking system technologies since 2018 situated in Talawade, Pune (Maharashtra).
About UsContact Info
- (+91) 951-837-7159
- info@nnitcarparking.in
- Registered Office Address: Flat no 1, Ruturang Apartment, Plot no 16, Madhusanchay Housing Society, Karvenagar, Pune 411052.
- Branch Office Address: Office no 2, Rahul Chamber, Karve Road, Pune 411001.
- Factory Address: 264/4, Mungase industrial estate, Jyotiba nagar, Talawade 411062.
Call Us On: (+91) 951-837-7159
Email id: info@nnitcarparking.in
3RP 305
General Specifications
Loading Capacity: 2000 kgs per car
Drive: Hydraulic
Coating: Sand blasted, Epoxy Painted System. Hot Dip Galvanized platforms
Power Pack: 3 phase Induction Motor 4 HP
Structural Loads of system
Vertical: 10000 kgs
Horizontal: 900 kgs
Electrical Requirement for system
Incoming Supply: 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack
Switchgear: 4 pole, 63 amps MCB for each powerpack
Cable from main switch to MCB: 4 core, 2.5 sq mm, armored Copper cable with a separate earth wire
CAR DIAMENSION TABLE
| Height Available (H) | 2350 | 2450 | 2550 | 2650 | 2750 | 2850 |
| Ground Car Height (G) | 2200 | 2300 | 2400 | 2500 | 2600 | 2700 |
| Max Pit Depth (PD) | 3400 | 3600 | 3800 | 4000 | 4200 | 4400 |
| Pit 1 Car Height (P1) | 1600 | 1700 | 1800 | 1900 | 2000 | 2100 |
| Pit 2 Car Height (P2) | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 |

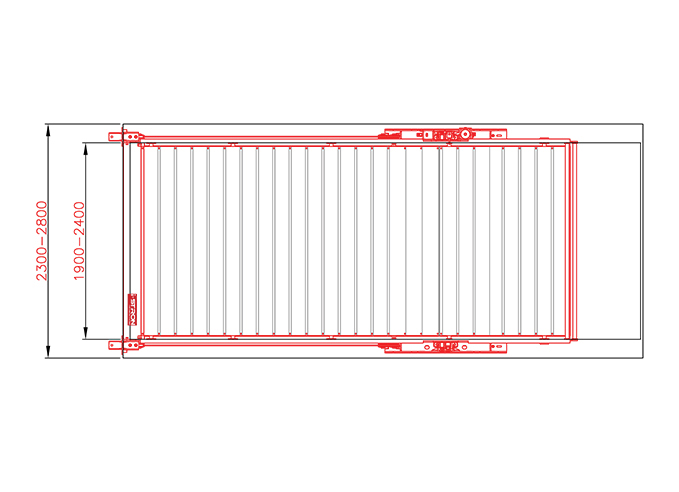

| Platform Width (w) | 1900 (min) | 2400(max) |
| Total Width Required | (W+400) | |
| Total Available Length | 4000-4500 | 4600-5000 | 5100-5500 |
| Platform Length | 3825 | 4175 | 4700 |
| Car Length | Total Available Length-200 | ||
Complying with set of quality standards, our products are appreciated for elegant design, easy usage, easy maintenance, easy installation, corrosion resistance & longer working life.
