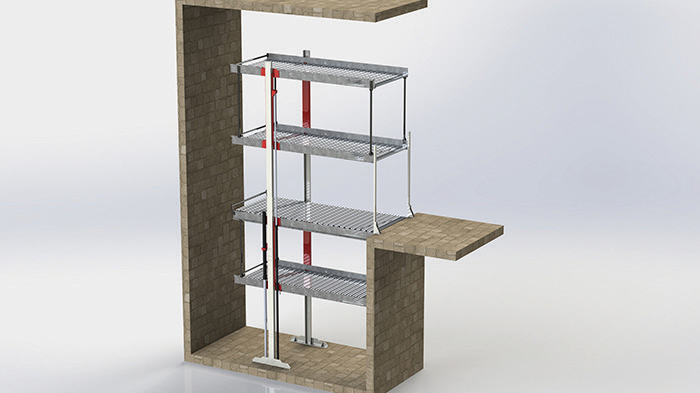

4DP uses 4 platforms driven upwards and downwards in a group of 2 platforms each. 1st and 2nd level platforms make a group and similarly, 3rd and 4th level platforms also make a group. Car parked on 2nd level platform has to be driven out and parked elsewhere while taking out car parked on 4th level platform. 1st, 2nd and 3rd level cars can be driven out independently.
Loading Capacity: 2000 kgs per car
Drive: Hydraulic
Coating: Sand blasted, Epoxy Painted System. Hot Dip Galvanized platforms
Power Pack: 3 phase Induction Motor - 4 HP
Vertical: 10000 kgs
Horizontal: 900 kgs
Incoming Supply: 3 phase, 50 Hz, 415 volts AC with Neutral and Earthing to every powerpack
Switchgear: 4 pole, 63 amps MCB for each powerpack
Cable from main switch to MCB: 4 core, 2.5 sq mm, armored Copper cable with a separate earth wire

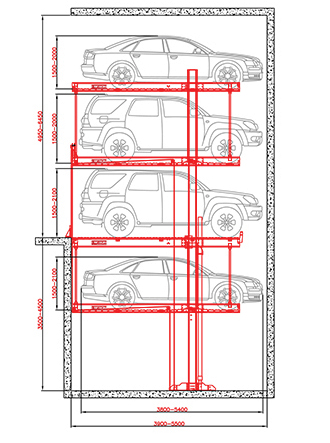

| Height Available (H) | 3700 | 3800 | 3900 | 4000 | 4100 | 4200 |
| Level 1 Car Height (G+1) | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 |
| Ground Car Height (G) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Max Pit Depth (PD) | 3500 | 3600 | 3700 | 3800 | 3900 | 3900 |
| Pit Car Height (P1) | 1600 | 1700 | 1800 | 1900 | 2000 | 2000 |
| Pit 2Car Height (P2) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |

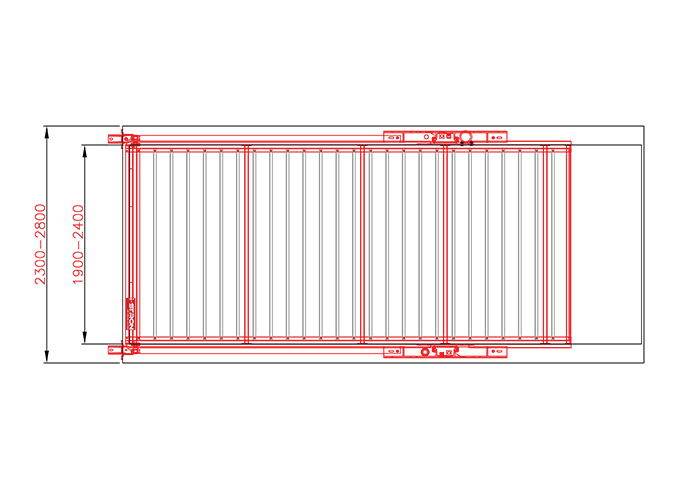

| Platform Width(w) | 1900 (min) | 2400(max) |
| Total Width Required | (W+350) | |
| Total Available Length | 4300-5000 | 5100-5500 | |
| (G),(P1),(P2) Platform Length | 4175 | 4700 | |
| (G+1)Platform Length | 3800 (Standard) | ||
| Car Length | Total Available Length-200 | ||
Complying with set of quality standards, our products are appreciated for elegant design, easy usage, easy maintenance, easy installation, corrosion resistance & longer working life.
